Chat Interaction - Form Def Property 2

Index

1. Overview
2. Property Behaviour
3. Form Def Examples
   1. Header Text
   2. Paragraph
   3. Dropdown
   4. Tags
   5. Checkboxes
   6. Multiple Choice
   7. Action Buttons
   8. Text Input
   9. Multiple Listbox
   10. Number Input
   11. Table Format
   12. Tree View
   13. Multi-line Input
   14. Rich Text Editor
   15. Auto Complete Text Box
   16. Date

Overview

The form_def input property in the chat interaction activity is a JSON string which defines default values for the form which the user will fill out. Using the form_def property in the chat interaction activity, you can pre-define what values will be displayed to the user to any type of form you create in the Pia Form Editor screen.

The form_def property in chat interaction activity is displayed as below in the package editor:

Here is an example of a basic package that uses form_def property:

# Orchestrator package
conditions:
- name: 'client_filter'
  optMode: 'OptOut'
  category: 'Testing'

- name: 'chat'
  option_button: 'Test Package'
  option_text: 'This is a text package.'
  option_category: 'Test Category'

steps:

- task: inline_powershell
  alias: form_def_builder
  inputs:
    script: |
            $formDef = @{
                StaffGroup = "Pia All Staffs"
            }
            return @{FormDef = $formDef}

- task: chat_interaction
  inputs:
    text: 'Form Definition test'
    form_name: 'text_form'
    form_display_mode: 'Embed'
    form_def: =form_def_builder.FormDef

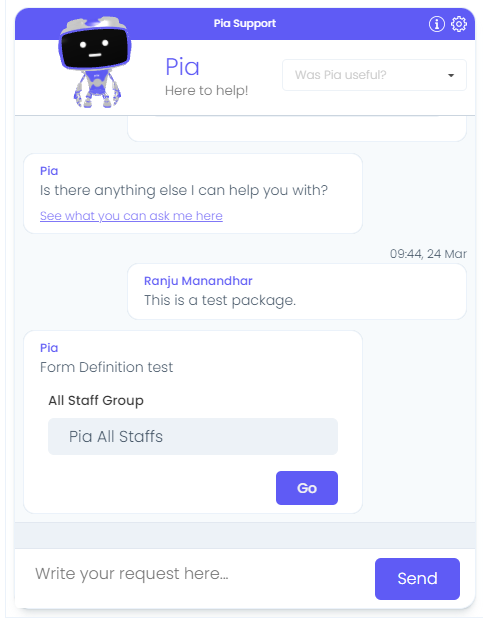

In the above example, form_def has been used to pass the field value in a text form. When the package runs in the Pia chatbot, the user will see a text form with the given value:

Property Behaviour

The main purpose of the form_def property in the chat interaction activity is to pass values to the form. You can use the inline_powershell activity to generate these values dynamically.

The form_def property is not a mandatory field in the chat interaction activity. In the form template, you may set a default value for any fields you create. The default value for a form can be defined in the form editor by clicking on the edit icon for each field type.

When specifying the form_def property on the chat interaction activity, any default values you set in the form_def for a field will override the default values in the form template for that field.

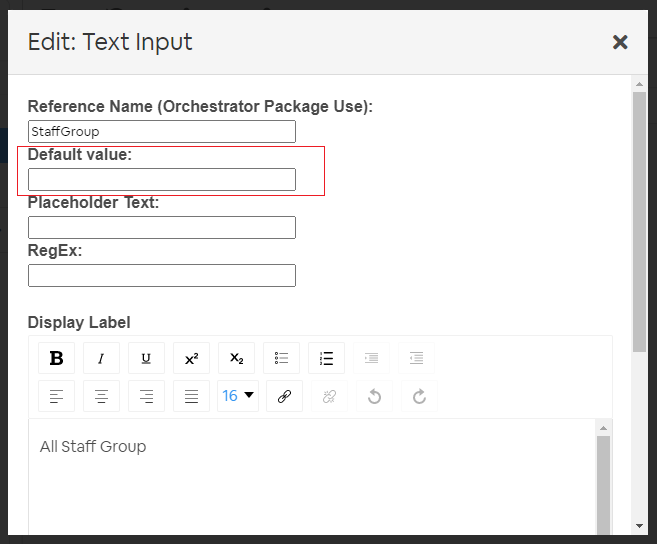

If the form field is missing both the form_def and the default value, then it will either show blank fields or the text 'Place holder Option' based on what type of field it is.

Examples

Header Text

Example of passing Header text field options via form_def property, JSON format:

- task: chat_interaction
  inputs:
    text: 'Direct Header test'
    form_name: 'header_form'
    form_def: '{"header": "Sample Header"}'
    form_display_mode: 'Embed'

Example of passing Header text field options via dynamic inline powershell:

# Orchestrator package
conditions:
- name: 'client_filter'
  optMode: 'OptOut'
  category: 'Testing'

- name: 'chat'
  option_button: 'Test Package'
  option_text: 'This is a Test Package'
  option_category: 'Testing Category'

steps:
- task: inline_powershell
  alias: header_inline
  inputs:
    script: |
            $headerText = "Sample Header"
            $formDef = @{header = $headerText}
            return @{formDef = $formDef}

- task: chat_interaction
  inputs:
    text: 'Inline Header test'
    form_name: 'header_form'
    form_def: =header_inline.formDef
    form_display_mode: 'Embed'

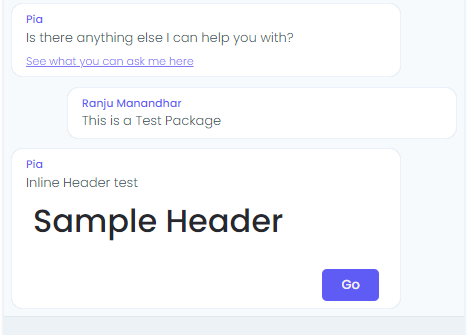

Here is the output in Pia chatbot:

Paragraph

Example of passing Paragraph text via form_def property, JSON format:

- task: chat_interaction
  inputs:
    text: 'Test'
    form_name: 'paragraph_form'
    form_def: '{"test_paragraph": "This is a test paragraph."}'
    form_display_mode: 'Embed'

Example of passing Header text field options via dynamic inline powershell:

# Orchestrator package
conditions:
- name: 'client_filter'
  optMode: 'OptOut'
  category: 'Testing'

- name: 'chat'
  option_button: 'Test Package'
  option_text: 'This is a Test Package'
  option_category: 'Testing Category'

steps:
- task: inline_powershell
  alias: paragraph_inline
  inputs:
    script: |
            $paragraphText = "This is a test paragraph."
            $formDef = @{test_paragraph = $paragraphText}
            return @{formDef = $formDef}

- task: chat_interaction
  inputs:
    text: 'Inline Paragraph test'
    form_def: =paragraph_inline.formDef
    form_display_mode: 'Embed'

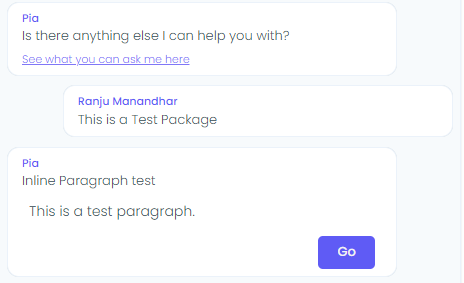

Here is the output in Pia chatbot:

Dropdown

Example of passing drop-down field options via form_def property, JSON format:

- task: chat_interaction
  inputs:
    text: 'Pick a user'
    form_name: 'dropdown_form'
    form_def: '{ "dropdown": [{ "text": "Option A", "value": "opt_1", "selected": true },
    { "text": "Option B", "value": "opt_2", "selected": false }] }'
    form_display_mode: 'Embed'

Example of passing dropdown field options via dynamic inline powershell:

# Orchestrator package
conditions:
- name: 'client_filter'
  optMode: 'OptOut'
  category: 'Testing'

- name: 'chat'
  option_button: 'Test Package'
  option_text: 'This is a test package.'
  option_category: 'Test Category'

steps:
- task: inline_powershell
  alias: form_def_builder
  inputs:
    script: |
            $dropdownSelect = @()
            $dropdownSelect += @{text="Option A"; value ="opt_1"; selected = $true;}
            $dropdownSelect += @{text="Option B"; value ="opt_2"; selected = $false;}
            $formDef = @{
                dropdown= $dropdownSelect
            }
            return @{FormDef = $formDef}

- task: chat_interaction
  inputs:
    text: 'Form Definition test'
    form_name: 'dropdown_form'
    form_display_mode: 'Embed'
    form_def: =form_def_builder.FormDef

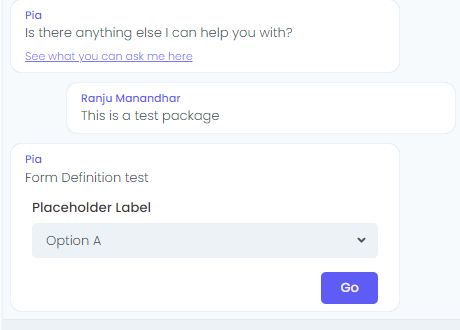

Here is the output in Pia chatbot:

Tags

Example of passing tags field options via form_def property, JSON format:

- task: chat_interaction
  inputs:
    text: 'Pick a User:'
    form_name: 'pick_user_form'
    form_def: '{ "user_selection": [{ "text": "Option A", "value": "opt_1", "selected": true },{ "text": "Option B", "value": "opt_2", "selected": true }] }'

Example of passing tags field options via dynamic inline powershell:

# Orchestrator package
conditions:
- name: 'client_filter'
  optMode: 'OptOut'
  category: 'Testing'

- name: 'chat'
  option_button: 'Form Def Test'
  option_text: 'This is a Test Package'
  option_category: 'Test Category'

steps:

- task: inline_powershell
  alias: form_def_builder
  inputs:
    script: |
            $dropdownSelect = @()
            $dropdownSelect += @{text="Cloud Only"; value ="CO"; selected = $true;}
            $dropdownSelect += @{text="Cloud Hybrid"; value ="CH"; selected = $true;}
            $formDef = @{
                dropdownSelect = $dropdownSelect
            }
            return @{FormDef = $formDef}

- task: chat_interaction
  inputs:
    text: 'Form Definition test'
    form_name: 'text_form'
    form_display_mode: 'Embed'
    form_def: =form_def_builder.FormDef

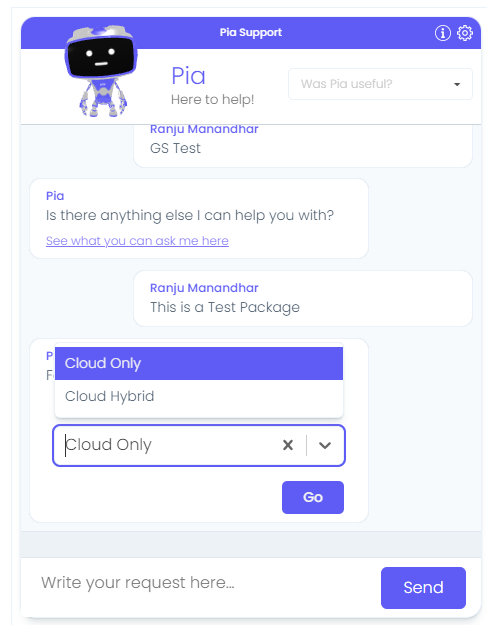

Here, a Tags field is used in the chat interaction activity with the reference name "dropdownSelect". When the package runs in the Pia Chatbot, the user will be shown a drop-down form with two options to select from as defined in the package:

Checkboxes

Example of passing checkbox field options via form_def property, JSON format:

- task: chat_interaction
  inputs:
    text: 'Select an Option'
    form_name: 'checkbox_form_test'
    form_def: |
                {
                    "checkbox":[
                                    {"text":"Option A", "value": "option_a", "selected": true},
                                    {"text":"Option B", "value": "option_b", "selected": false}
                                ]
                }
    form_display_mode: 'Embed'

Example of passing checkbox field options via dynamic inline powershell:

# Orchestrator package
conditions:
- name: 'client_filter'
  optMode: 'OptOut'
  category: 'Testing'

- name: 'chat'
  option_button: 'Test Package'
  option_text: 'This is a test package'
  option_category: 'Test'

steps:
- task: inline_powershell
  alias: checkbox_inline
  inputs:
    script: |
            $checkboxOptions = @()
            $checkboxOptions += @{text = "Option A"; value = "option_a"; selected = $true;}
            $checkboxOptions += @{text = "Option B"; value = "option_b"; selected = $false;}
            $formDef = @{checkbox = $checkboxOptions}
            return @{formDef = $formDef}

- task: chat_interaction
  inputs:
    text: 'Select an Option'
    form_name: 'checkbox_form_test'
    form_def: =checkbox_inline.formDef
    form_display_mode: 'Embed'

Here is the output in Pia chatbot:

Multiple Choice

Example of passing multiple choice field options via form_def property, JSON format:

- task: chat_interaction
  inputs:
    text: 'Select an Option'
    form_name: 'multiple_choice'
    form_def: |
                {
                    "multiple_choice_form":[
                                    {"text":"Option A", "value": "option_a", "selected": true},
                                    {"text":"Option B", "value": "option_b", "selected": false}
                                ]
                }
    form_display_mode: 'Embed'

Example of passing multiple choice field options via dynamic inline powershell:

# Orchestrator package
conditions:
- name: 'client_filter'
  optMode: 'OptOut'
  category: 'Testing'

- name: 'chat'
  option_button: '1'
  option_text: 'This is a test package'
  option_category: 'Test'

steps:
- task: inline_powershell
  alias: radio_inline
  inputs:
    script: |
            $radioOptions = @()
            $radioOptions += @{text = "Option A"; value = "option_a"; selected = $true;}
            $radioOptions += @{text = "Option B"; value = "option_b"; selected = $false;}
            $formDef = @{multiple_choice_form = $radioOptions}
            return @{formDef = $formDef}

- task: chat_interaction
  inputs:
    text: 'Select an Option'
    form_name: 'multiple_choice'
    form_def: =radio_inline.formDef
    form_display_mode: 'Embed'

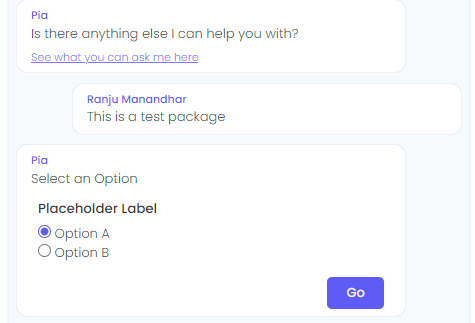

Here is the output in Pia chatbot:

Action Buttons

Example of passing action button options via form_def property, JSON format:

- task: chat_interaction
  inputs:
    text: 'Action Button Test'
    form_name: 'action_button_test'
    form_def: |
                {
                    "actionButton":[
                                    {"text":"Test Option A", "value": "option_a"},
                                    {"text":"Test Option B", "value": "option_b"}
                                ]
                }
    form_display_mode: 'Embed'

Example of passing action button options via dynamic inline powershell:

# Orchestrator package
conditions:
- name: 'client_filter'
  optMode: 'OptOut'
  category: 'Testing'

- name: 'chat'
  option_button: 'Test Package'
  option_text: 'This is a test package'
  option_category: 'Test Category'

steps:
- task: inline_powershell
  alias: action_buttons_inline
  inputs:
    script: |
            $actionButtonOptions = @()
            $actionButtonOptions += @{text = "Option A"; value = "option_a";}
            $actionButtonOptions += @{text = "Option B"; value = "option_b"; }
            $formDef = @{actionButton = $actionButtonOptions}
            return @{formDef = $formDef}

- task: chat_interaction
  inputs:
    text: 'Action Button Test'
    form_name: 'action_button_test'
    form_def: =action_buttons_inline.formDef
    form_display_mode: 'Embed'

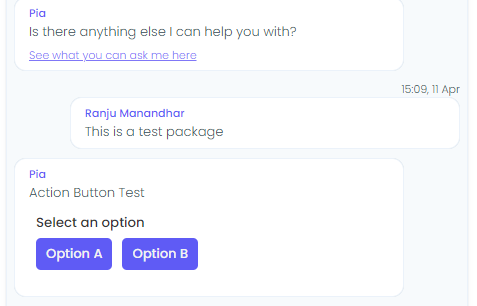

Here is the output in Pia chatbot:

Text Input

Example of passing text input value via form_def property, JSON format:

- task: chat_interaction
  inputs:
    text: 'Form Def Test'
    form_name: 'text_input_form'
    form_def: '{"text_input": "This is a test value"}'
    form_display_mode: 'Embed'

Example of passing text input value via dynamic inline powershell:

# Orchestrator package
conditions:
- name: 'client_filter'
  optMode: 'OptOut'
  category: 'Testing'

- name: 'chat'
  option_button: 'Test'
  option_text: 'This is a Test Package'
  option_category: 'Testing Category'

steps:
- task: inline_powershell
  alias: inputtext_inline
  inputs:
    script: |
            $inputText = "This is a test value"
            $formDef = @{text_input = $inputText}
            return @{formDef = $formDef}

- task: chat_interaction
  inputs:
    text: 'Test'
    form_name: 'text_input_form'
    form_def: =inputtext_inline.formDef
    form_display_mode: 'Embed'

Here is the output in Pia chatbot:

Multiple Listbox

Example of passing multiple listbox options via form_def property, JSON format:

- task: chat_interaction
  inputs:
    text: 'Select an Option'
    form_name: 'multiple_listbox'
    form_def: |
                {
                    "listbox_form":[
                                    {"text":"Option A", "value": "option_a", "selected": true},
                                    {"text":"Option B", "value": "option_b", "selected": true},
                                    {"text":"Option C", "value": "option_c", "selected": false},
                                    {"text":"Option D", "value": "option_d", "selected": false}
                                ]
                }
    form_display_mode: 'Embed'

Example of passing multiple listbox options via dynamic inline powershell:

# Orchestrator package
conditions:
- name: 'client_filter'
  optMode: 'OptOut'
  category: 'Testing'

- name: 'chat'
  option_button: 'Test'
  option_text: 'This is a Test Package'
  option_category: 'Testing Category'

steps:
- task: inline_powershell
  alias: listbox_inline
  inputs:
    script: |
            $listboxOptions = @()
            $listboxOptions += @{text = "Option A"; value = "option_a"; selected = $true;}
            $listboxOptions += @{text = "Option B"; value = "option_b"; selected = $true;}
            $listboxOptions += @{text = "Option C"; value = "option_c"; selected = $false;}
            $listboxOptions += @{text = "Option D"; value = "option_d"; selected = $false;}
            $formDef = @{listbox_form = $listboxOptions}
            return @{formDef = $formDef}

- task: chat_interaction
  inputs:
    text: 'Select an Option'
    form_name: 'multiple_listbox'
    form_def: =listbox_inline.formDef
    form_display_mode: 'Embed'

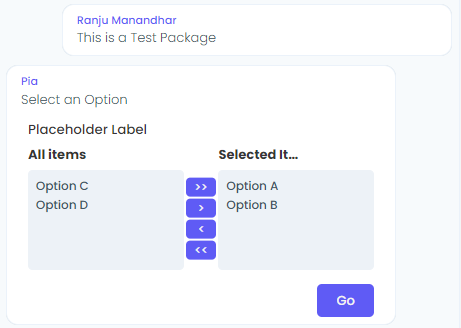

Here is the output in Pia chatbot:

Number Input

Example of passing number input value via form_def property, JSON format:

- task: chat_interaction
  inputs:
    text: 'Form Def Test'
    form_name: 'number_input'
    form_def: '{"number_input": "11"}'
    form_display_mode: 'Embed'

Example of passing number input value via dynamic inline powershell:

# Orchestrator package
conditions:
- name: 'client_filter'
  optMode: 'OptOut'
  category: 'Testing'

- name: 'chat'
  option_button: 'Test'
  option_text: 'This is a Test Package'
  option_category: 'Testing Category'

steps:
- task: inline_powershell
  alias: numbertext_inline
  inputs:
    script: |
            $inputNum = "11"
            $formDef = @{number_input = $inputNum}
            return @{formDef = $formDef}

- task: chat_interaction
  inputs:
    text: 'Test'
    form_name: 'number_input'
    form_def: =numbertext_inline.formDef
    form_display_mode: 'Embed'

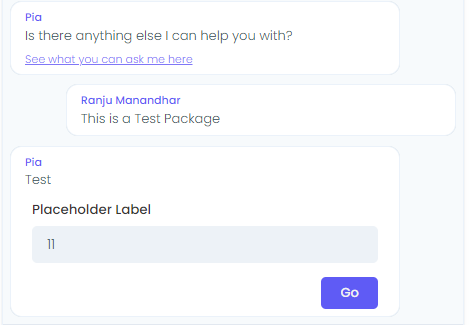

Here is the output in Pia chatbot:

Table Format

Example of passing table format values via form_def property, JSON format:

- task: chat_interaction
  inputs:
    text: 'Here is your output:'
    form_name: 'table_form'
    form_def: |
            {"table_values":[{"user":"Test User 1","position":"Manager"},
            {"user":"Test User 2 ","position":"Manager"}]
            }
    form_display_mode: 'Embed'

Example of passing table format values via dynamic inline powershell:

# Orchestrator package
conditions:
- name: 'client_filter'
  optMode: 'OptOut'
  category: 'Testing'

- name: 'chat'
  option_button: 'Test'
  option_text: 'This is a Test Package'
  option_category: 'Testing Category'

steps:
- task: inline_powershell
  alias: table_inline
  inputs:
    script: |
            $tableOptions = @()
            $tableOptions += [pscustomobject]@{ user = "Test User 1"; position = "Manager"}
            $tableOptions += [pscustomobject]@{ user = "Test User 2 "; position = "Manager" }
            $formDef = @{table_values = $tableOptions}
            return @{formDef = $formDef}

- task: chat_interaction
  inputs:
    text: 'Here is your output:'
    form_name: 'table_form'
    form_def: =table_inline.formDef
    form_display_mode: 'Embed'

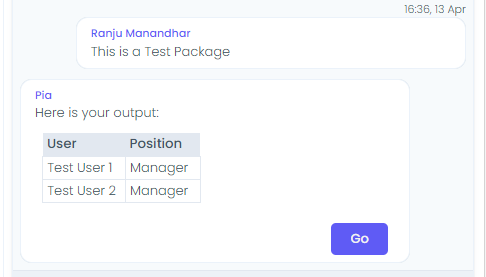

Here is the output in Pia chatbot:

Tree View

Example of passing tree view values via form_def property, JSON format:

steps:

- task: chat_interaction
  inputs:
    text: 'Test'
    form_name: 'tree_view'
    form_def: '{"tree_view_options": [
                    {
         "children": [],
         "isExpanded": false,
         "text": "Folder 1",
         "value": "option_a"
     },
     {
         "children": [
         {
                     "children": [],
                     "isExpanded": false,
                     "text": "Folder 2.1",
                     "value": "option_b1"
         },
             {
                 "children": [],
                 "isExpanded": false,
                 "text": "Folder 2.2",
                 "value": "option_b2"
             },
             {
                 "children": [],
                 "isExpanded": false,
                 "text": "Folder 2.3",
                 "value": "option_b3"
             },
             {
                 "children": [],
                 "isExpanded": false,
                 "text": "Folder 2.4",
                 "value": "option_b4"
             }
         ],
             "isExpanded": false,
             "text": "Folder 2",
             "value": "option_b"
             },
             {
             "children": [],
             "isExpanded": false,
             "text": "Folder 3",
             "value": "option_c"
             },
]
    }'
    form_display_mode: 'Embed'

Example of passing tree view values via dynamic inline powershell:

# Orchestrator package
conditions:
- name: 'client_filter'
  optMode: 'OptOut'
  category: 'Testing'

- name: 'chat'
  option_button: 'Test'
  option_text: 'This is a Test Package'
  option_category: 'Testing Category'

steps:
- task: inline_powershell
  alias: tree_inline
  inputs:
    script: |
            $treeView = @()
            $treeView += @{text = "Folder 1"; value = "folder_a"; isExpanded = $false; children=@();}
            $treeView += @{text = "Folder 2"; value = "folder_b"; isExpanded = $false; children = @(
                                [pscustomobject]@{text = "Folder 2.1"; value = "folder_b1"; isExpanded = $false; children = @();},
                                [pscustomobject]@{text = "Folder 2.2"; value = "folder_b2"; isExpanded = $false; children = @();},
                                [pscustomobject]@{text = "Folder 2.3"; value = "folder_b3"; isExpanded = $false; children = @();}
                        )}
            $treeView += @{text = "Folder 3"; value = "folder_c"; isExpanded = $false; children=@();}
            $formDef = @{tree_view_options = $treeView}
            return @{formDef = $formDef}

- task: chat_interaction
  inputs:
    text: 'Inline TreeView test'
    form_name: 'tree_view'
    form_def: =tree_inline.formDef
    form_display_mode: 'Embed'

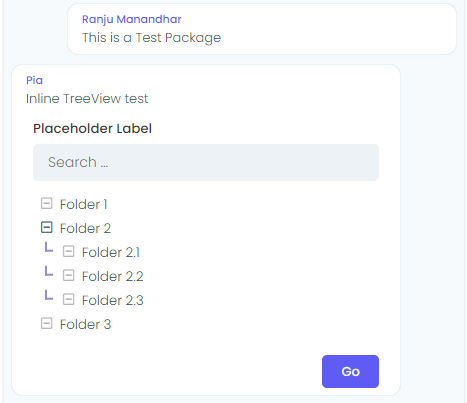

Here is the output in Pia chatbot:

Multi Line Input

Example of passing Multi Line Input values via form_def property, JSON format:

steps:
- task: chat_interaction
  inputs:
    text: 'Test'
    form_name: 'multiline_input_form'
    form_def: '{"multiline_input":"This is a test multi-line input value."}'
    form_display_mode: 'Embed'

Example of passing Multi Line Input values via dynamic inline powershell:

# Orchestrator package
conditions:
- name: 'client_filter'
  optMode: 'OptOut'
  category: 'Testing'

- name: 'chat'
  option_button: 'Test Package'
  option_text: 'This is a Test Package'
  option_category: 'Testing Category'

steps:
- task: inline_powershell
  alias: multiline_inline
  inputs:
    script: |
            $multiLine = "This is a test multi-line input value."
            $formDef = @{multiline_input = $multiLine}
            return @{formDef = $formDef}

- task: chat_interaction
  inputs:
    text: 'Inline Multiline test'
    form_name: 'multiline_input_form'
    form_def: =multiline_inline.formDef
    form_display_mode: 'Embed'

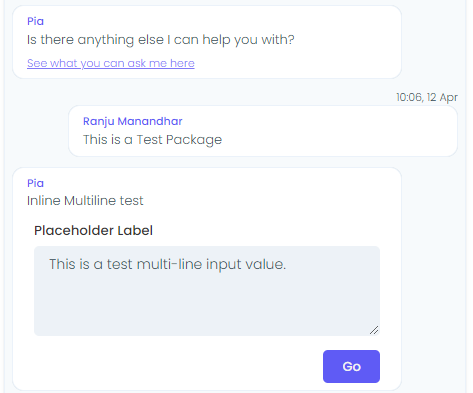

Here is the output in Pia chatbot:

Rich Text Editor

Example of passing rich text editor values via form_def property, JSON format:

steps:
- task: chat_interaction
  inputs:
    text: 'Test'
    form_name: 'rich_text_editor_form'
    form_def: '{"input_richtext":"Inline RichText Editor test Value."}'
    form_display_mode: 'Embed'

Example of passing rich text editor values via dynamic inline powershell:

# Orchestrator package
conditions:
- name: 'client_filter'
  optMode: 'OptOut'
  category: 'Testing'

- name: 'chat'
  option_button: 'Test'
  option_text: 'This is a Test Package'
  option_category: 'Testing Category'

steps:
- task: inline_powershell
  alias: richtext_inline
  inputs:
    script: |
            $richText = "Inline RichText Editor test Value."
            $formDef = @{input_richtext = $richText}
            return @{formDef = $formDef}

- task: chat_interaction
  inputs:
    text: 'Inline RichText Editor test'
    form_name: 'rich_text_editor_form'
    form_def: =richtext_inline.formDef
    form_display_mode: 'Embed'

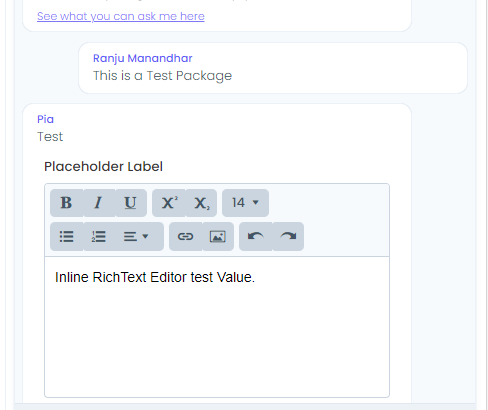

Here is the output in Pia chatbot:

Auto Complete Text Box

Example of passing auto complete text box values via form_def property, JSON format:

steps:
- task: chat_interaction
  inputs:
    text: 'Test'
    form_name: 'auto_complete_form'
    form_def: '{"auto_complete": ["Test Value 1", "Test Value 2", "Test Value 3"]}'
    form_display_mode: 'Embed'

Example of passing auto complete text box values via dynamic inline powershell:

# Orchestrator package
conditions:
- name: 'client_filter'
  optMode: 'OptOut'
  category: 'Testing'

- name: 'chat'
  option_button: 'Test'
  option_text: 'This is a Test Package'
  option_category: 'Testing Category'

steps:
- task: inline_powershell
  alias: autocomplete_inline
  inputs:
    script: |
            $autoComplete = @("Test Value 1", "Test Value 2", "Test Value 3")
            $formDef = @{auto_complete = $autoComplete}
            return @{formDef = $formDef}

- task: chat_interaction
  inputs:
    text: 'Inline Auto Complete test'
    form_name: 'auto_complete_form'
    form_def: =autocomplete_inline.formDef
    form_display_mode: 'Embed'

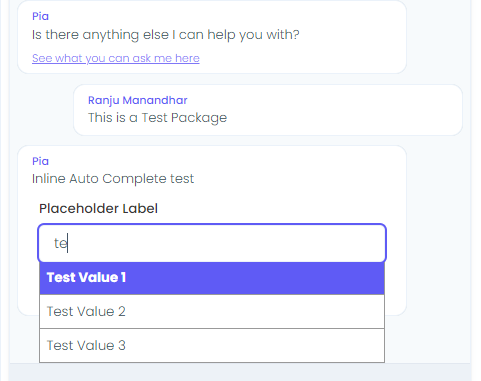

Here is the output in Pia chatbot:

Date

Example of passing date field values via form_def property, JSON format:

- task: chat_interaction
  inputs:
    text: 'Test'
    form_name: 'date_form'
    form_def: '{"date_picker": "12/04/2023"}'
    form_display_mode: 'Embed'

Example of passing date field values via dynamic inline powershell:

# Orchestrator package
conditions:
- name: 'client_filter'
  optMode: 'OptOut'
  category: 'Testing'

- name: 'chat'
  option_button: '1'
  option_text: 'This is a Test Package'
  option_category: 'Testing Category'

steps:
- task: inline_powershell
  alias: date_inline
  inputs:
    script: |
            $datePicker = "12/04/2023"
            $formDef = @{date_picker = $datePicker}
            return @{formDef = $formDef}

- task: chat_interaction
  inputs:
    text: 'Pick a date to continue:'
    form_name: 'date_form'
    form_def: =date_inline.formDef
    form_display_mode: 'Embed'

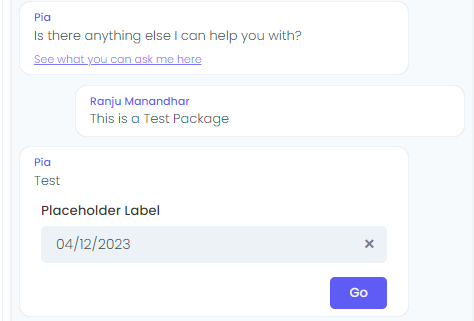

Here is the output in Pia chatbot:
