Extension Automations

As a part of Pia AI Desk, Pia provides you with a set of 50-60 automation packages. These packages let you perform various tasks with Pia such as Staff Onboarding and Offboarding.

Pia's automations support a range of scenarios. Right now, with advanced automations (such as Staff Onboarding and Offboarding) you can use manual tasks to achieve the gap between what Pia does and the processes for your clients.

Using Extension Automations in Pia you can create your own extensions for your favorite Pia packages.

Examples:

• At the start of Staff Onboarding automation for client "ABC Company", prompt a message to the Service Desk engineer to remind them to do something
• At the end of the Staff Onboarding automation, send an email to HR to let them know that a new user has been created
• At the end of the terminate user automation, revoke a license in backup radar via a third party API
• After submitting the Staff Onboarding Form, send an email to HR with the New User Request details

First, see it in action

Demo of running an extension after Staff Onboarding creation

How we built it

Quick Start

📚 LEARN BY DOING! 🎬

The best way to become an Extension Automation guru is OUR TUTORIAL SERIES. 🎉📺.

Once you have decided what you want your extension automation to do, follow the steps below:

1. Create a new automation
2. Add the extension_automation condition to let Pia know that your automation is an extension automation
3. Use data from the parent automation in your extension
4. Promote your automation to 'live'
5. Link your extension automation to a Pia automation

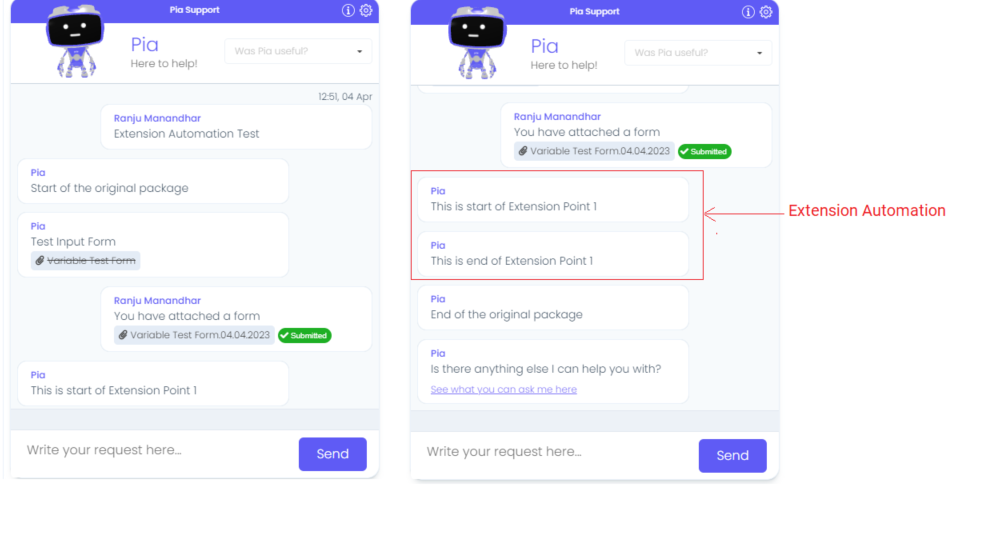

Here is an example of a package running in Pia chatbot with an extension automation linked to it:

Deciding on Extension Automation Properties

The first step is to find the gap between a Pia package and the business process you want to automate. This will help you understand what you want your extension automation to do.

Once you have decided on your required extension automation and the package you wish to extend, the next step is to define at what point of the package your extension automation will run. Pia currently provides extension points for the Staff Onboarding and Staff Offboarding automation in the following areas:

Package Name	Extension Points
Pia: Staff Onboarding Package	Start of the Package, Middle of the Package (Prior to Staff Onboarding), End of the Package
Pia: Staff Offboarding Package	Start of the Package, Middle of the Package (Prior to Staff Offboarding), End of the Package
Pia: Reset Network Password Package	Start of the Package, Middle of the Package, and End of the Package (After the user is selected)
Pia: Account Locked Out Package	Start of the Package and End of the Package
Pia: Re-enable Offboarded Account Package	Start of the Package and End of the Package
Pia: Re-allocate User License Package	Start of the Package and End of the Package
Pia: Manage User Licenses Package	Start of the Package and End of the Package

Use data from the parent automation in your extension

Pia gives you the ability to use the data from the parent automation in your extension automation. The data will be available as a json object in the format as required by the package.

You can use the data from the parent automation using an inline PowerShell activity in your extension package where you can set the input property as:

- task: inline_powershell
  inputs:
    data: =extension_automation.parent_data
    script: |
        $obj = $(ConvertFrom-Json $data)
        write-host $data

Data available from Staff Onboarding Package

Extension Point 1 (Start of the Package) There is no data available for this extension point.

Extension Point 2 (Middle of the Package)

{
    "additionalAttributes": "",
    "additionalProxyAddresses": "",
    "alAdditionalAttributes": "",
    "changeAtLogon": true,
    "city": "",
    "company": "",
    "countryCode": "",
    "department": "",
    "description": "",
    "displayName": "",
    "email": "",
    "employeeId": "",
    "expiration": "",
    "firstName": "",
    "groups": "",
    "jobTitle": "",
    "lastName": "",
    "managerUpn": "",
    "middleName": "",
    "mobilePhone": "",
    "office": "",
    "officePhone": "",
    "ou": "",
    "password": "",
    "postalCode": "",
    "skipMailNickname": true,
    "state": "",
    "street": "",
    "userName": "",
    "userPrincipalName": ""
}

Extension Point 3 (End of the package)

{
    "adGroupsAssigned": [],
    "additionalAttributes": "",
    "additionalProxyAddresses": "",
    "alAdditionalAttributes": "",
    "azureGroupsAssigned": [],
    "changeAtLogon": true,
    "city": "",
    "company": "",
    "country": "",
    "department": "",
    "description": ""
    "displayName": "",
    "emailAddress": "",
    "employeeId": "",
    "expiration": "",
    "firstName": "",
    "groups": "",
    "jobTitle": "",
    "lastName": "",
    "licenses": [],
    "manager": "",
    "middleName": "",
    "mobilePhone": "",
    "office": "",
    "officePhone": "",
    "orgUnit": "",
    "ou": "",
    "password": "",
    "postcode": "",
    "samAccountName": "",
    "skipMailNickname": true,
    "state": "",
    "street": "",
    "userPrincipalName": ""

}

Data available from Staff Offboarding Package

Extension Point 1 (Start of the Package) There is no data available for this extension point.

Extension Point 2 (Middle of the Package)

{
    "additionalAttributes": "",
    "clientId": 123,
    "immutableId": "",
    "samAccountName": "",
    "scheduleDate": "",
    "scheduleForLater": true,
    "userPrincipalName": ""
}

Extension Point 3 (End of the package)

{
    "adGroupsRemoved": [],
    "additionalAttributes": "",
    "azureGroupsRemoved": [],
    "clientId": 123,
    "displayName": "",
    "emailAddress": "",
    "emailAddresses": [],
    "firstName": "",
    "licenses": [],
    "orgUnit": "",
    "samAccountName": "",
    "scheduleDate": "",
    "scheduleForLater": true,
    "surname": "",
    "userPrincipalName": ""
}

Data available from Reset Network Password Package

Extension Point 1 (Middle of the Package)

{
    "userPrincipalName": "",
    "password": "!",
    "changeAtNextLogon": true,
    "clientId": 123
}

Linking Extensions to a Client

See the instructions for adding an Extension to a Client
