Loop Activity

Overview

The Loop Activity is one of the features available in Pia Package Editor that you can use to execute the same activity multiple times in a single package execution. This activity makes your package more dynamic and is one of the ways to control the flow of your automation.

One scenario where the Loop Activity may be used is to ask the user of Pia a question and upon checking the answer, you may decide to ask the same question again if the answer was not sufficient. For example, you may ask the user to select a machine where exchange server is installed. If the user selects a machine and clicks proceed, you may check their selection and loop back to the question if the selection was invalid.

Another scenario where this activity is used today is in the printer troubleshooting package. The package contains multiple troubleshooting steps to resolve printer issues. In this case, the user may want to try the first option and if that does not work, try the second option or the third depending upon how many options there are. Here, with the loop feature, Pia can perform the first option the user selects, ask the user if it has resolved their issue and if not, prompt the user to select the next troubleshooting option. In this scenario, Pia is simply looping back to the main option selection question each time.

The Loop activity can be located by searching for "Loop" in the list of activities in the package editor:

Here is a working sample of the activity in a basic package where the package loops back to 'first_activity' activity every time user selects 'Yes' in the chat interaction.

# Orchestrator package
conditions:
- name: 'client_filter'
  optMode: 'OptOut'
  category: 'Testing'

- name: 'chat'
  option_button: 'Loop Test'
  option_text: 'This is a Test Package'
  option_category: 'Test Category'

steps:
- task: chat_interaction
  alias: 'first_activity'
  inputs:
    text: 'Hi! What would you like to do?'
    form_name: 'loop_test'
    form_display_mode: 'Embed'

- task: inline_powershell
  alias: selection_processor
  inputs:
    selection: =first_activity.form.Options
    script: |
            $message = "$selection has been completed."
            return @{Message = $message;}

- task: chat_interaction
  inputs:
    text: =selection_processor.Message

# The form below contains a radio field with two options.
# The options are 'Yes' and 'No'.
# The 'Yes' option has a value of true and the 'No' option has a value of false.

- task: chat_interaction
  alias: 'loop_option'
  inputs:
    text: 'Would you like to try again?'
    form_name: 'yes_no_form'
    form_display_mode: 'Embed'

- task: loop
  inputs:
    condition: =loop_option.form.Option
    activity: 'first_activity'

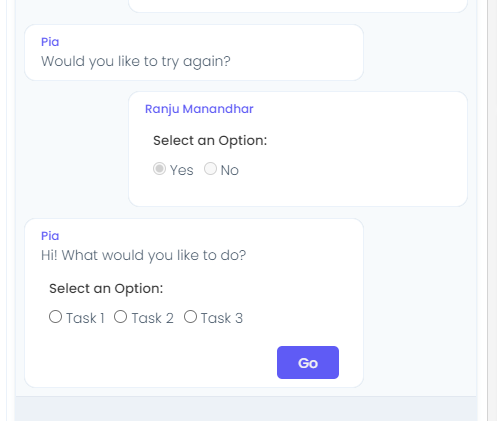

In the above example, user will be redirected to the first chat interaction (first_activity) every time they select 'Yes' in the third chat interaction (loop_option).

Activity Behaviour

The primary behaviour of the Loop activity is to allow the users to perform the same action multiple times until they want to stop. By doing so, the same activity is executed multiple times until the desired result is achieved.

The loop activity in the Package Editor closely resembles a do/while loop as it will execute the activity once, check if the condition is true and repeat the same activity in a loop as long as the condition remains true.

Note: In scenarios where the loop activity stop condition is always true (i.e. the activity continuously loops until the user cancels the package manually), your package is limited to 500 activity executions per execution.

The Loop Activity can be used in all package executions (i.e. packages that are initiated via Schedule or Ticketing System Event or the Chatbot).

Input Properties

Below are the properties to modify the behaviour of the activity.

Property Name: condition
Property Required: Yes
Property Description: If the condition is 'true', it will continue with the looping. If the condition is set to 'false', looping behaviour will be stopped.

Property Name: activity
Property Required: No
Property Description: This is the name of the property or alias to loop back to.

Output Properties

There is no output property for this activity.

Examples

The loop activity in Pia can be implemented in three ways:

Loop based on chat interaction
The first example above shows a loop based on chat interaction where the input by the user determines if the loop condition is triggered in the package or not.

Loop based on error handling and validation
The example below shows a loop where the user is reverted back to the first question until the package receives desired input.

# Orchestrator package
conditions:
- name: 'client_filter'
  optMode: 'OptOut'
  category: 'Testing'

- name: 'chat'
  option_button: 'Loop Test 3'
  option_text: 'This is a Loop Test'
  option_category: 'Test Category'

steps:
- task: chat_interaction
  alias: 'first_activity'
  inputs:
    text: |
            Hi, your selection must contain 'Option A' to continue:
    form_name: 'select_an_option'
    form_display_mode: 'Embed'

- task: inline_powershell
  alias: loop_condition_processor
  inputs:
    selected_option: =first_activity.form.SelectOption
    script: |
            $loop = $true
            Write-Host "$selected_option"
            $optionsColl = $selected_option -split ","
            if($optionsColl.length -gt 0)
            {
                foreach($arrayOpt in $optionsColl)
                {
                    if($arrayOpt -eq "OptionA")
                    {
                        $loop = $false
                        break;
                    }
                }
            }

            return @{Loop = $loop; Skip = -not $loop;}

- task: chat_interaction
  skip: =loop_condition_processor.Skip
  inputs:
    text: |
            Your selection does not contain 'Option A' as one of the options. Please Try again.

- task: loop
  inputs:
    condition: =loop_condition_processor.Loop
    activity: 'first_activity'


- task: chat_interaction
  inputs:
    text: 'Hello Again!'

Loop based on deterministic behaviour
Below is the example where the package loops until the defined action is performed for all the selected machines. For this package, a custom activity has been created in Activity Editor as below:

Function VerifyActivity()
{
    # Put code here to verify the command will work given the variables
    return $true;
}

Function ExecuteActivity()
{
    # Do stuff here

    # Set output variables
    $currentLoggedInUser = whoami

    $activityOutput.out.currentLoggedInUser = $currentLoggedInUser
    # Set execution status
    $activityOutput.success = $true;

    return $activityOutput;
}

This activity retrieves the current logged in user for all the selected machines in the below package:

# Orchestrator package
conditions:
- name: 'client_filter'
  optMode: 'OptOut'
  category: 'Testing'

- name: 'chat'
  option_button: 'Get Machines Test2'
  option_text: 'This is a test package'
  option_category: 'Test Category'

steps:
- task: get_machines
  alias: agents_for_client

- task: inline_powershell
  alias: prepare_data
  inputs:
    agents_for_client: =agents_for_client.machines
    script: |
            write-host 'agents for user' $agents_for_user
            If(![string]::IsNullOrEmpty($agents_for_client) ){

                $agents_for_client = [Array]$(ConvertFrom-Json $agents_for_client)
                $agents_for_client = $agents_for_client | Where {$_.Status -eq "Online"}
                #Write-Host "=====agents_for_client: $(ConvertTo-Json -Depth 5 $agents_for_client)"
                $allMachines += $agents_for_client | Select @{N='text';E={"$($_.ComputerName) `(User: $($_.LastLoggedInUser)`)"}},@{N='value';E={$($_.QualifiedName)}}

            }
            Else{

                $agents_for_client = @()
            }


            $allMachines = $allMachines | Where {![string]::IsNullOrEmpty($($_.value))} | Sort -Property text;

            $formDefProps = @{
                isLastLoggedComputer = ($lastLoggedComputers.Count -gt 0).ToString();
                lastLoggedComputer = @($lastLoggedComputers);
                computer = @($allMachines);
            };

            return @{
                formDef = $(ConvertTo-Json -Depth 5 $formDefProps);
                isNotLoggedComputer = -not [System.Convert]::ToBoolean($formDefProps.isLastLoggedComputer);

            }

- task: chat_interaction
  alias: selected_machines
  inputs:
    text: |
        Select the machine to continue:
    form_name: 'get_machines2'
    form_def: =inline_powershell.formDef
    form_display_mode: 'Embed'

# Retrieve currently logged in user in the selected machines
- task: inline_powershell
  alias: loop_condition_processor
  inputs:
    selected_machines: =selected_machines.form.computer
    script: |
            $computers = @()
            $selectedMachines = $selected_machines -split ","
            $totalMachines = $selectedMachines.Length
            $loopData = @{TotalCount =$totalMachines; Machines = $selectedMachines; }
            return @{LoopData = @{Count = $totalMachines; Machines = $selectedMachines; SkipLoopProcesses = $totalMachines -lt 1}}

#Start
- task: inline_powershell
  alias: loop_start_checker
  skip: =loop_condition_processor.LoopData.SkipLoopProcesses
  inputs:
    machines: =loop_condition_processor.LoopData.Machines
    last_run_index: =loop_end_checker.Index
    script: |
            $index = $last_run_index
            if($index -eq $null)
            {
                $index = 0
            }
            else
            {
                [int]$index += 1
            }
            $currentSelectedMachines = $machines[$index]
            return @{CurrentIndex = $index; Machine = $currentSelectedMachines;}

- task: get_logged_in_user
  executionEnvironment: 'AsUser'
  executionEnvironmentKey: =loop_start_checker.Machine

- task: inline_powershell
  alias: 'chat_message_processor'
  inputs:
    machine: =loop_start_checker.Machine
    user: =get_logged_in_user.currentLoggedInUser
    script: |
            $chatText = "The logged in user in machine $machine is $user"
            return @{ChatMessage = $chatText;}

- task: chat_interaction
  inputs:
    text: =chat_message_processor.ChatMessage


#End
- task: inline_powershell
  alias: loop_end_checker
  skip: =loop_condition_processor.SkipLoopProcesses
  inputs:
    total_loops: =loop_condition_processor.LoopData.Count
    last_run_index: =loop_start_checker.CurrentIndex
    script: |
            $continueLoop = $true
            if([int]$last_run_index -ge ([int]$total_loops) - 1)
            {
                $continueLoop = $false
            }
            return @{Index = [int]$last_run_index; Loop = $continueLoop;}

- task: loop
  inputs:
    condition: =loop_end_checker.Loop
    activity: 'loop_start_checker'


- task: chat_interaction
  inputs:
    text: 'Task Completed.'

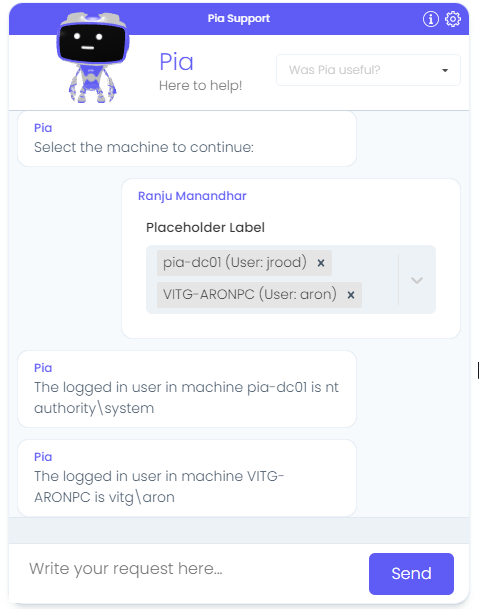

In this package, Pia retrieves the current logged in user for each of the selected machines in a loop and presents them in the chatbot as below:

Additional Example

Here is a traditional loop with a terminating check (i > 5) and position counter (pos). There are three components needed for this setup:

Counter Activity: The first activity which keeps track of the loop position. I Have used an inline_powershell activity to demonstrate this.
Activities: Any activities you want to execute multiple times go here
Loop Activity: The loop activity at the end of the loop

You can use loop_start.pos as an input parameter so your activities know what iteration of the loop they are currently in.

Here is the sample code:

     #Keep track of the position in the loop by using a self-referencing input parameter
    # Output a property to tell the loop activity whether we should continue executing
    - task: inline_powershell
      alias: 'loop_start'
      inputs:
        pos: =loop_start.pos
        script: |
                $i = If($pos -ne $null) { [int]$pos + 1 } Else { 0 }
                $continue = If($i -gt 5) { "False" } Else { "True" }

                return @{ pos = $i; continue = $continue }

    - task: inline_powershell
      inputs:
        pos: =loop_start.pos
        script: |
                Write-Host "This is loop number $pos"

    - task: loop
      inputs:
        condition: =loop_start.continue
        activity: 'loop_start'
